Repost - 1999, Building Log of AF3, Cream Cheese

Time to relocate posts from my old website to this blog.  This is the building log of Cream Cheese, an AF3 16 foot sharpie designed by Jim Michalak that I built in 1999.

Materials and Costs
The cost: $2713
A note about my costs: I had absolutely nothing in the way of boating stuff beforehand except for some leftover line from my last boat. I used lumber yard materials, but I used clear redwood in places. I wound up buying more epoxy, polyurethane glues, paint and hardware than I needed. I could have probably cut $500 to $1000 out of the cost if I had really tried.

  • Lumber: AC Fir plywood, pine 1x4, A-grade redwood for the mast, seats, hatch
  • Fasteners: Silicon-Bronze nails, galvanized deck screws, brass wood screws, stainless steel deck screws, zinc coated bolts and nuts
  • Glue: epoxy, PL premium, PL premium liquid, PL 400 construction, Elmers polyurethane
  • Paint: Homebase brand oil based house paint and primer, Deckworks exterior varnish (I had a hard time getting this varnish to cure)
  • Sail: I didn't have any sewing supplies at all. I calculated that I could have bought sailcloth and supplies for abound $250 (including things like sailor's palm and a gromet die). So Sailrite was maybe 30% more expensive than doing it all myself. I also bought some extra stuff like a bolt rope that never used.
lumber & misc hardware$1009
Raka epoxy & epoxy supplies$247
sails & sail tools (Sailrite - awsome folks)$365
oars (Barkely Sound - great spruce oars), oar leathers from Woodenboat$102
sail rig: lines, blocks, anchor, deck hdw, sunbrella cloth, cusions, compass, misc hdw... from Defender$440
trailer & traier supplies$550

Building total: 170 hours

This was my first boat. I had no problems with Jim's plans or instructions other than my own goofs. The kids and I had fun the whole time, with no major do-overs. Thanks Jim!

1-30-99buy wood & glue2 hr40 degrees
1-31-99mark up bulkheads1.5 hr40 degrees
2-7-99cut bulkheads, glue #12.8(w/kids)4 hr60 degrees
2-20-99bulkhead 22 hr
2-27-99bulkhead 7.53 hr40 degrees
3-13-99epoxy fill panel 2, botched transom (w/ kids)1 hr40 degrees
4-11-992nd transom1 hr45 degrees
4-18-99transom & bulkhead 2 (w/ kids)1.5 hr45 degrees
4-24-99loft & glue sides2 hr40 degrees
5-2-99cut side 1, glue side 21.5 hr55 degrees
5-8-99patch holes w/ epoxy, assemble sides to bulkheads (w/ kids)8 hr60 degrees
5-15-99cut wales & chine logs (w/kids)2 hr70 degrees
5-16-99glue up first layer of wales2.5 hr70 degrees
5-21-99wales + chine log 1 (w/ kids)3.5 hr70 degrees
5-22-99chine log 22 hr70 degrees
6-5-99loft & glue bottom, fair chine logs (w/ kids)4 hr70 degrees
6-6-99cut bottom & mount on hull, fill knot holws (w/kids)6 hr70 degrees
6-13-99sand bottom edges (w/ kids)3 hr60 degrees

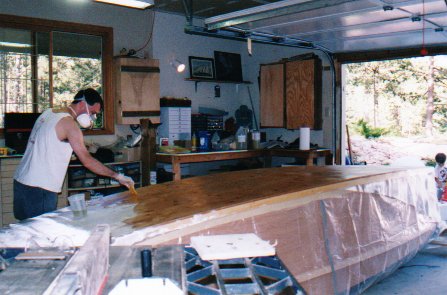

7-5-99fiberglass bottom w/ epoxy & tape starboard chine2 hr80 degrees
7-10-99glass tape port chine, repairs & putty, second coat of epoxy3 hr70 degrees
7-11-99glass bow grounding area1 hr70 degrees
7-18-99deck clamps3 hr70 degrees
7-22-99deck clamps + supports & deck beams8 hr80 degrees
7-25-99assemble decks8 hr80 degrees
7-31-99sanding & corners1 hr70 degrees
8-1-99oarlocks & seat cleats7 hr70 degrees
8-7-99oarports & leeboard guards, rudder cheeks (w/ kids)4 hr70 degrees
8-8-99oarports, leeboard guards, seats (w/ kids)6 hr70 degrees
8-15-99seats1 hr80 degrees
8-22-99leeboard & leeboard guards4 hr80 degrees
9-4-99sand & prime (w/ sprayer)6 hr80 degrees
9-18-99prime coat 2 (brush & roller) (w/ kids)6 hr70 degrees
9-25-99prime coat 2, final paint inside4 hr75 degrees
10-3-99final paint outside (w/ kids)3 hr75 degrees
10-9-99finish paint & work on rudder4 hr75 degrees
10-17-99paint red gun'nls & misc sanding2 hr65 degrees
12-23-99paint leeboard1 hrgot a garage heater!
12-25-99sew sailbag, reef patches4 hr
12-26-99sew sail patches, reef points5 hr
12-28-99sew sail patches2 hr
12-29-99sew seams & tape, install grommets (done w/ sail!)5 hr
1-1-2000paint leeboard & misc parts1 hr
1-3-2000paint leeboard & install windows2 hr
1-8-2000cut scarf joints for mast2 hr
1-9-2000cut/glue scarf joints for mast, oarlock sockets, gudgeons, pintles, seats6 hr
1-12-2000mark & slice mast2 hr
1-14-2000slice mast & glue 2 halves1 hr
1-15-2000slice mast, mast parner3 hr
1-16-2000shape & sand mast, mast parner, plug knot hole in mast4 hr
1-18-2000varnish spars & misc pieces2 hr
1-20-2000varnish second coat1 hr
1-22-2000load onto trailer, rigging, ridgepole & a-frame for boat cover2 hr
1-23-2000fitting the trailer, oar leathers, rig leeboard3 hr
TOTAL170 hr

May 1999

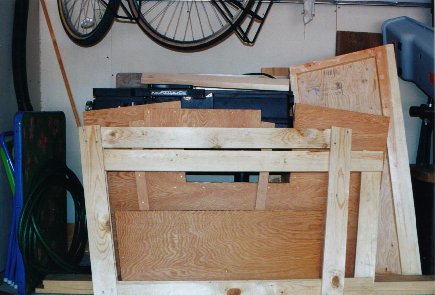

Bulkheads against the wall

Side panel ready for assembly (notice the snow)

The bow

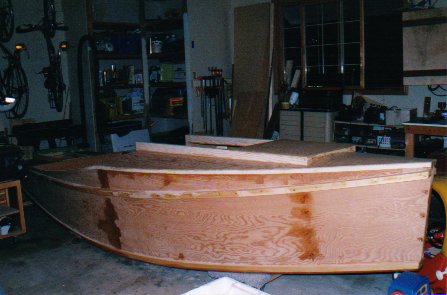

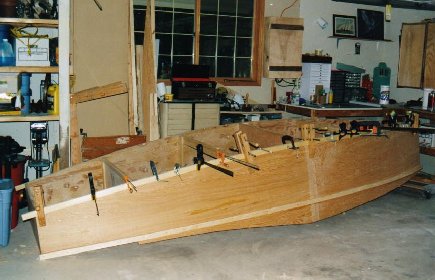

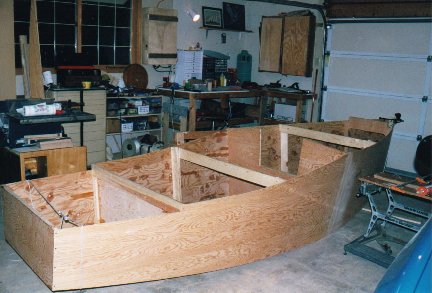

Sides and transom assembled

Sides and transom assembled

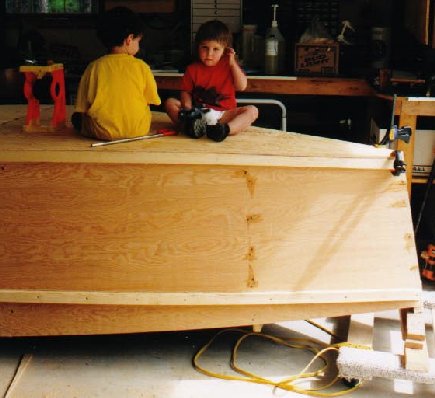

June 1999

Summer 1999

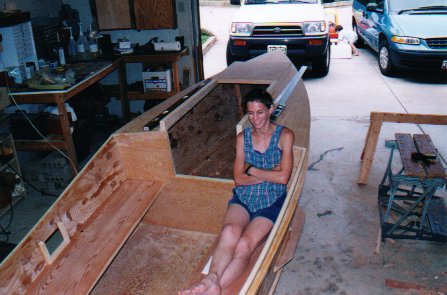

We later removed these seats - they didn't work out

Fall 1999

Sail in the dining room/sail loft. It took about 14 hours (with only a few hours of previous sewing experience)

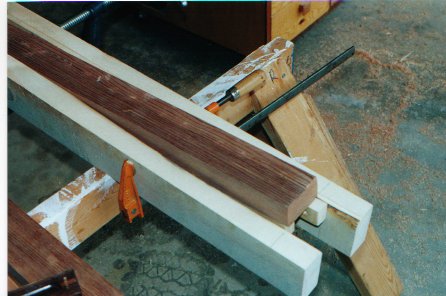

Making a scarf joint for the mast. Step 1: Piece in the scarfing jig

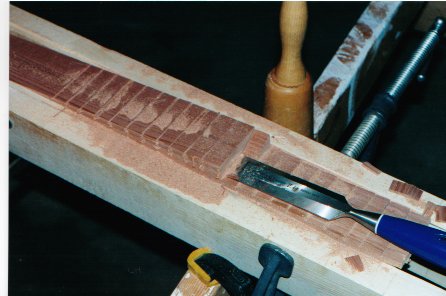

Step 2: Chopping out the excess

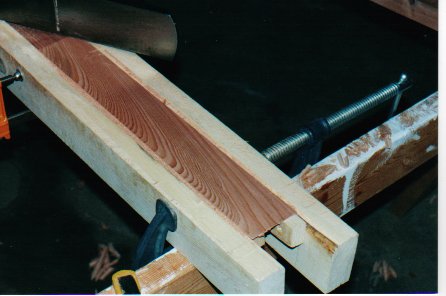

Step 3: Planing the surface

Step 4 ready for gluing
